How to Build a Jurassic Park Jeep: A complete reference guide.

To contribute to this guide, please email your contributions to webmaster-anti-bot-bit@jpmotorpool.com. Thank you!

Building your own Jurassic Park vehicle? Join our Workshop Build Help Group today!

Jeep Wrangler:

General Information:

  • 1992 Jeep Wrangler Sahara Edition
    • 4.0L 6 Cylinder Engine
    • Manual Pref, Auto Optional (depending on vehicle number and scene)
    • Factory Sand Beige Metallic Low Gloss Paint
    • Full Fenders w/ Side Steps
    • Front Round Fogs w/ Stoneguards
    • Cinder (Grey) Dash & Pad

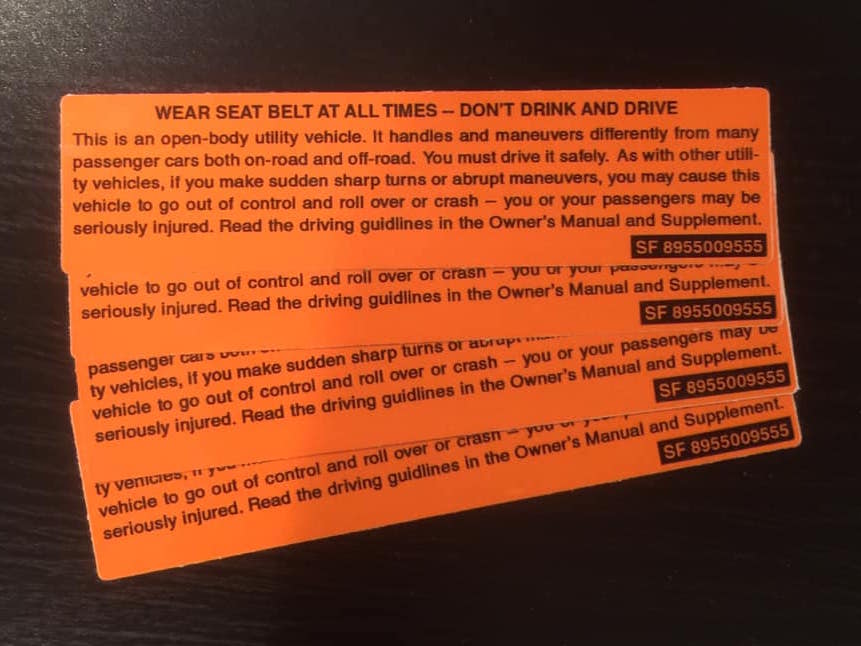

    • Cinder (Grey) Visor w/ Orange Warning Label
    • Dark Green Door Panels w/ Brown/Green Map Pouches
    • Dark Green w/ Tan Trim Cloth Bucket Seats w/ Pouches
    • Dark Green Carpet
    • Dark Green Console
    • Full Roll Cage w/ Spice Roll Bar Covers
    • Spice Soft Top Untinted Windows

Jeep Shots & Scenes Breakdown Document

Complete build video:



Video by Daniel Arevalo

Body:

Paint

  • Primer
    • Use a white or light grey primer.
  • Base Coat
    • Screen Used Color
      • 1992 Chrysler Sahara "Sand Beige Low Gloss Metallic Candied Single Stage Urethane"
        • PPG code: LJ1 or PJ1 or 27055
    • Alternative Color (for use when LJ1 is not available)
  • Stripes
    • Recommended Color:
      • 1992 Ford "Performance Red"
      • PPG code: EY or 4614
  • Modern Sources (Custom Mix Sheet Required)
    • PPG (factory supplier)
    • Shopline
    • Omni
    • Tasco

Painting Guides

General Overview

in Inches

in Centimeters

Recommended Paint Steps

Paint vs Plasti-Dip

  Paint Plasti-Dip
Application Skill: Can be done both at home by spray paint, at home with an air powered paint gun, or by a professional shop. Can be done at home with no equipment necessary.
Life Expectancy: Paint life has many variables like amount of sun exposure, and quality of prep-work. Depending on level of application, it can last a very long time. Most plasti-dips can fail after the first year. Once damage occures, you will need to redo the application. Also prone to sun-fading.
Durability: Paint that has a protective clear coat can be very durable. As long as the clear coat is monitored and maintained, no normal damage should occure. Plasti-Dip is very susceptible to scratches, nicks, and other damage associated with general wear.
Repairability: If it has been damaged it can be repaired as long as you have some of the original paint. However it may be difficult to make the repair blend in depending on location of damage.

Once a section of plasti-dip has been damaged, the only repair option is to redo that section. The new plasti-dip may not match previous sections due to sun-fading.
Install Time: Paint is a very time-consuming process, and its final quality depends greatly how much prep-work was done. Plasti-Dip can be installed on the vehicle in as little as one day.
Overall Quality: Paint depending on the application, has a better quality over Plasti-Dip and provides a more permanent and finished look. Plasti-Dip is prone to sun-fading, and low durability. However it is a good option for those who want a temporary look.

Consensus: If you're looking for a permanent result, then paint by far is the best choice. If you'd rather have a quick temporary design, then plasti-dip may be a better solution for you.
While vinyl is another option, we do not recommend it for Jeep builds based on material cost, durability, and overall finished look.

Decals and Marks

  • OEM “Jeep” Decals
    • Part Number: 5AS15LT6
    • Features:
      • 1992 Sahara Exclusive Version
      • Spice, Non-Metallic Color
      • Single Piece per Package
      • Approximately 6-3/4" x 1-15/16"
    • Placement:
      • 1 Decal Per Side
      • Letters Placed Over Stamped Metal "Joop"
  • OEM “4.0L HIGH OUTPUT” Decal
    • Part Number: 5CL06LT6
    • Features:
      • 1992 Sahara Exclusive Version
      • Spice, Non-Metallic Color
      • Single Piece Per Package
      • Approximately 5-5/16" x 1-13/16"
    • Placement:

Hood Stamp "JPXX"

  • Part Number: None
  • Features:
    • Custom Made By Studio
    • Overall Size Appx. 12" x 20" (H x W)
    • "Box" Portion Features a rounded lower right corner
    • Digits are approximately 10" tall
    • Digits match vehicle's side digit values
  • Placement:
    • One (1) Decal on Jeep Hood
    • Centered Left-to-Right
    • Appx. 4" upward of raised hood lip
    • View Placement - Coming Soon
  • Available Files:
    • To be used in conjunction with choice of side digit file below
    • Red Decal Files (USE WITH RED VINYL)
      • PDFPDF
    • Stencil Decal Files (USE WHEN PAINTING RED)

Side Digits

  • Part Number: None
    • Industria LT Std Solid font is a possible original source, but modified by the studio for use on the vehicles. Not an exact match.
  • Features:
    • Custom Made By Studio
    • Appx. 10" Tall
    • Width Varies Per Number Choice
    • Two Digits (00-99)
    • Digits match vehicles hood stamp values
    • See Recommended Paint Steps above
  • Placement:
    • One (1) Decal Per Side
    • Centered Left-to-Right Inside Stripe
    • Appx. 1.5" downward from hood seam
    • View Placement - Coming Soon
  • Available Files:
    • Suggested Side Digit Font Pack, as seen in Jurassic Park
      • PDFPDF
    • Alternative Files
      • Jurassic World
      • Islands of Adventure (corrected)
      • Archived JPMP Font (as seen on IOA Jeep 23)
        • PDF
        • Used from 2016 - 2020

Door Decals

  • Part Number: None
  • Features:
    • Custom Made By Studio
    • 15.5" Wide
    • Yellow Exterior Ring
    • Black Inner Ring
    • Red Core
    • Height varies with decal proportions
  • Placement:
    • One (1) Decal Per Door
    • Align top of “Jurassic Park” bar with top of lower door hinge.
    • Align vertical axis to the center upper-door-frame mounting hole.
    • View Placement
  • Available Files:
    • Door Decals
      • AIPDF

License Plate

  • Part Number: None
  • Features:
    • Aluminum Plate
    • White-Red-Yellow Logo over White Background
    • Black Decal Digits over Yellow Background
    • "i.n.C.R." (Isle Nublar Costa Rica) in Red
    • Red stripe dividing plate regions
  • Placement:
  • Modern Sources:
Back to Top

Exterior:

Antenna, CB Whip Components

CB Whip Antenna

  • Part Number: None
  • Features:
    • 102" Whip Style Antenna
    • Tapered hex base
    • Stainless steel appearance
  • Modern Sources:





Ball Mount for CB Whip Antenna

  • Part Number: Radio Shack OR Archer Cat. No. 21-1115
  • Features:
    • Plastic, Round Grey Base
    • Rubber, Round Black Gasket
    • Stainless Steel, Round Backing Plate
    • Base Components: Appx. 2-3/4"
    • Chrome 2-Piece Ball, 3/8-24 Thread, 2" Diameter
  • Modern Sources:
  • Placement
  • Available Files:
    • 3D Print .STL Antenna Mount Base
      • RadioShack Grey Base to ProComm-JBC986
      • Credit: Danel Kim

Coax Cable, RG-58 for CB Whip Antenna (OPTIONAL)

  • Part Number: None
  • Features:
    • 18 Feet Long
    • Terminal Style Connector on Antenna End
    • PL259 Style Connector on Radio End
  • Modern Sources:

Spring for CB Whip Antenna

CB Radio (Optional, Does Not Appear On Screen)

  • Full-size Cobra: 29LTD
  • Full-size Uniden: Bearcat 980SSB
  • Portable/Mobile Midland: 75-822

Tie Down for CB Whip Antenna


Back to Top

Bumpers

Back to Top

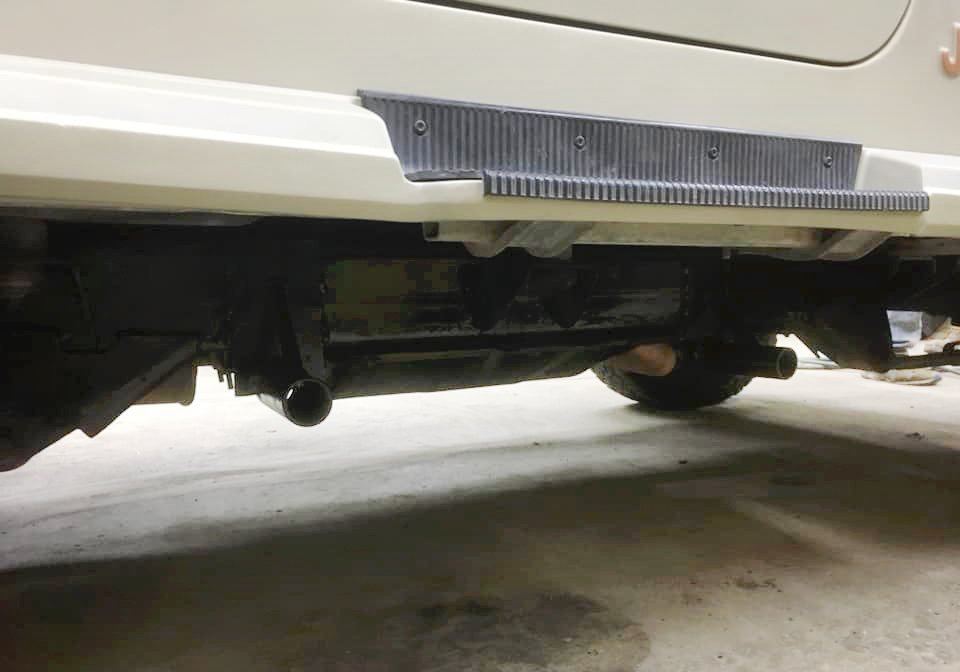

Camera Mounts

  • Brand: Custom
  • Part Number: None
  • Features:
    • Welded to frame
    • Installed on both driver and passenger sides
    • Uses 1.75" ID steel tube
    • Uses steel plate of various thickness
    • Used to mount cameras
  • Modern Sources:
    • No Posted Runs (Inquire With Kytor Industries)
  • Available Files:
Back to Top

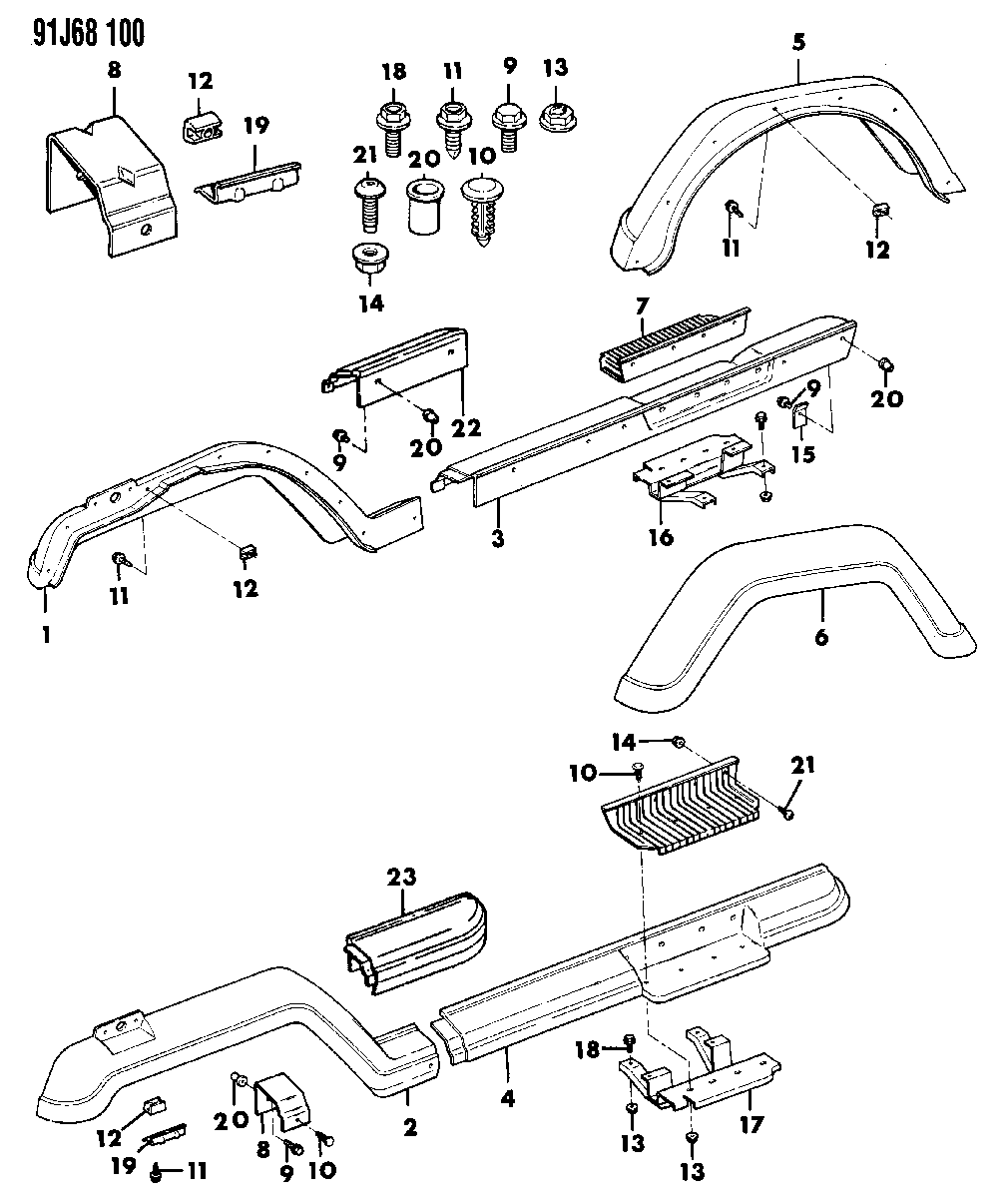

Fender Flares

  • Factory Flares
    • w/o End Extensions
    • w/ Side Step Extensions
    • Front, Left: 5AH15JX9
    • Front, Right: 5AH14JX9
    • Rear, Left: 5AH17JX9
    • Rear, Right: 5AH16JX9

Side Steps

  • Sidesteps:
    • Left: 5AF95JX9
    • Right: 5AF94JX9
    • Bracket, Left: 55009131
    • Bracket, Right: 55009130
    • Step Insert: 55017500

Side Step & Fender Flare Installation Instructions

PDF

Back to Top

Fog Lights

OEM Factory Front Fog Lights

  • Part Number: 56002784
  • Features:
    • Matte Black, Plastic Housing
    • Integral Stone Guard
    • 6 Horizontal, 4 Vertical Guard Lines
    • H3 Bulb
    • Chrome/Silver Reflector
    • Single Bolt Mount
    • Appx. 7" Outer Diameter
    • Appx. 6" Reflector Diameter
    • 2-Prong Weather Pack Connector
  • Available Files

OEM Factory Fog Mount/Brackets

  • Part Number: None
  • Features:
    • 90 Degree Bend
    • Single Upper Bolt-Hole (for fog light)
    • Two Horizontally Aligned Lower Bolt-Holes (for bumper end cap studs)
    • Distinct channel running point-to-point along central axis
  • Available Files:
  • Modern Sources:

Rear Fog Lights

  • Part Number: Power/Dick Cepek C819S
  • Features:
    • Note: Power (Dick Cepek) and KC HiLites used the same mold to produce their lights. (Confirmed by Power and KC Reps)
    • Black Matte Housing
    • Amber Lens
    • Removable Shield (Discard)
    • Bulb Shield Inside Lens
    • Appx. 4 x 6" Lens
    • Chrome/Silver Reflector
    • Single Bolt Mount
  • Close Alternate Versions:
    • KC Hilites 46 Series/770 LE (Comparison Image)
      • Light Kits Part Numbers:
        • #570 - LE Series Fog (Amber) Light Kit
        • #770 - LE Series Driving (Clear) Light Kit
        • #772 - 46 Series All-Season (Amber + Clear) Light Kit
      • Individual Light Part Numbers:
        • #1570 - 46 Series Fog (Amber)
        • #1770 - 46 Series Driving (Clear)
      • Amber Lens
        • Lens Part Numbers:
          • #4510 - 4x6 Lens Fog (Amber)
          • #4511 - 4x6 Lens Driving (Clear)
  • Placement:

Remote Searchlights

  • Brand: Ray-Line / JABSCO
  • Part Number: 135SL or 60020 0000
  • Features:





Back to Top

Lightbar

  • Brand: Sears (unconfirmed)
  • Part Number: 28 R 35027 (uncofirmed)
  • Features:
    • Single Piece Design (NOT THREE PIECE)
    • No countersinks on screen used version
    • 5 Mount Tabs on JP18/29
    • Custom Machined Plate on JP12
    • Cable loom passes through passenger side arm on JP12
    • Attaches to outside, upper windshield hinge bolts
    • Kalibur K101X Tie Down Attached to Passenger Side Mount
  • Modern Sources:
  • Available Files:

    • PDFZIP

Back to Top

Rims & Tires

Tires

  • Brand/Make:
    • Screen Accurate: BFGoodrich Radial All-Terrains (Discontinued)
    • Alternate 1: BFGoodrich All-Terrains KO1 (Discontinued)
    • Alternate 2: BFGoodrich All-Terrains KO2
  • Size(s):
    • Stock: 215/75R 15
    • Screen Accurate: Sahara Factory Upgrades
    • Recommended (for appearance): R235/75R 15 or 30x9.5x15 (largest option)
  • Available Products
    • "Radial All-Terrain T/A BFGoodrich" lettering for alternative tires, contact Jack Fauth
  • Tire History

Tires over 10 years old should not be driven on regularly. BFGoodrich Radial All-terrain tires that have the word Radial on the sidewall in the white raised lettering should be used as an emergency or display purpose spare tire only.

Rims/Wheels

  • Brand: OEM (Mopar/Jeep)
  • Part Number: 52003368
  • Features:
    • OEM/Stock “JEEP 5 Spoke Rim”.
      NOT Sahara Edition Rims. Aka Rally Rims.
    • 15x7.0 (WJN)
    • 5 x 4.5 Lug Pattern
      These rims work on YJs, XJs, and TJs but NOT CJs, JKs, or JLs
      (Rubicon Rims are a 16” alternate option but are larger, only come on TJs, and are concave not convex in appearance.)
    • Plastic Center Cap
    • “JEEP” lettering engraved one one spoke
    • 1/2-20 Thread
    • Lug Nuts
      • Drive Wheels: Painted Red
      • Spare: Chrome
  • Center Cap Specs:
    • Factory Replacements (stock number on inside of center cap)
      • Part Number (Factory): 8952002969
      • Part Number (Alt. Factory): 52002971
    • Modern Alternatives
      • Steel Plugs
      • McMaster (discontinued): 9563K95 (Credit: AJ Quuick)
      • ACE Hardware (discontinued)
      • 3D Print File by hellhammer11
Back to Top

Soft Top

  • Brand: OEM (Bestop)
  • Part Number: None
  • Features:
    • Factory Khaki, Spice, or Dark Sand Color
    • Untinted Windows
    • OEM Style (Original or Replace-A-Top) Top & Frame
  • Modern Sources



Back to Top

Tool Boxes (JP10)

  • Brand: Knaack JOBMASTER
  • Part Number: 28
  • Features:
    • 28x12x12" Dimensions
    • Tan Coated Steel
    • Bent Rod Handles On Each End
    • Distinct Channel Along Ends
    • Decals Removed
  • Modern Sources:
  • Placement/Installation:
    • Boxes should be flush to body
    • Boxes should be supported w/ Appx 4" L-Brackets
    • Drill two holes to secure box to frame rails, and at least two (or four) to secure box to L-Brackets. Reuse frame rail hardware in conjunction with new hardware. Lock-Nuts recommended.
    • Tip: Cut and use a 2x4 to support box to find the right height for the L-brackets.
    • Show Installation photos
DISCLAIMER: The Modifications Required To Produce A Screen Accurate JP10 Jeep May Conflict With Local Laws.
After Removing the Roll Bar, The Vehicle May No Longer Be “Street Legal”.
Please Check Local Laws Before Removing The Roll Bar.



Back to Top

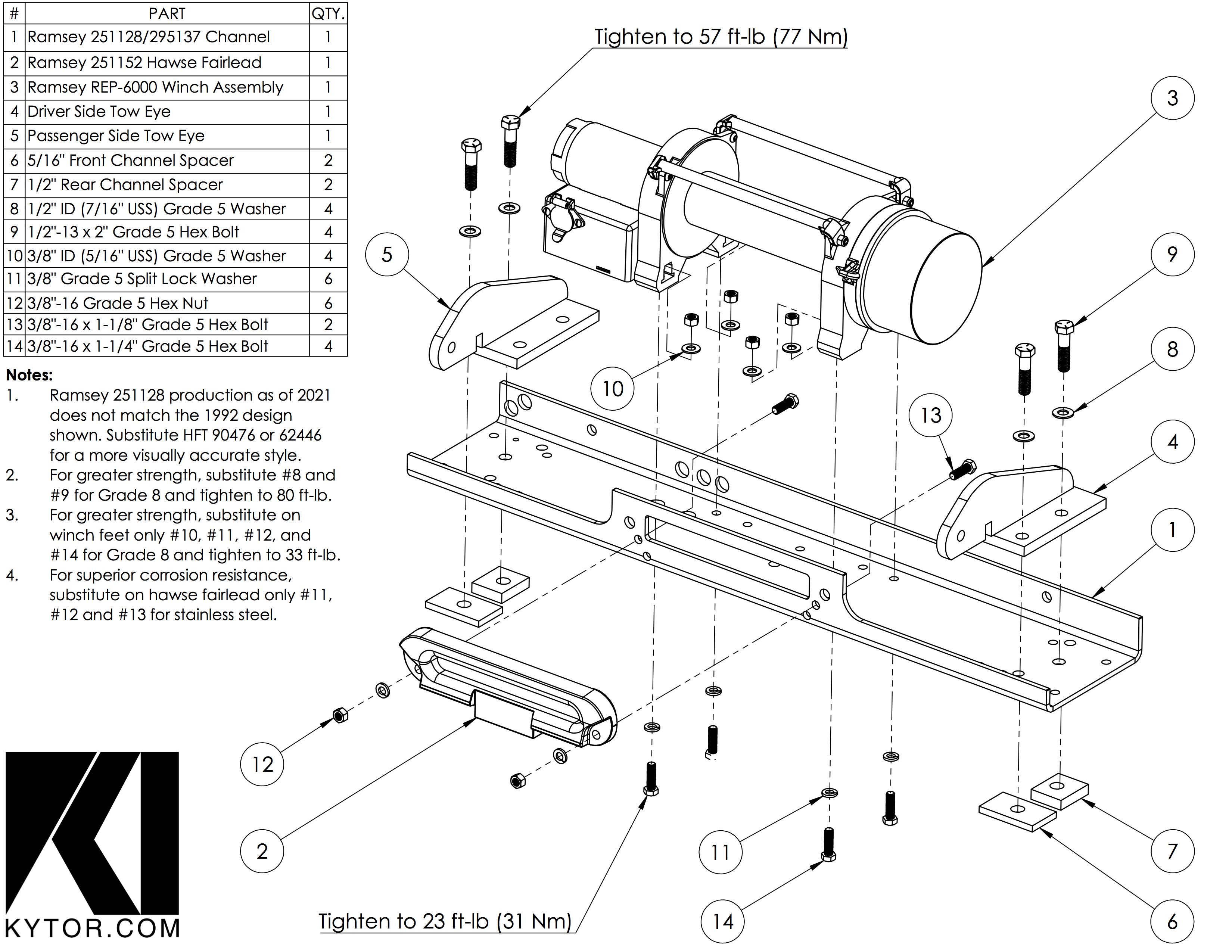

Winch





Winch pictured above on the Screen-Used Jeep











Interior:

Door Panels

  • Dark Green, w/Brown Pocket 1992-93 ("Sahara")
    • Left: 5AY29LG8
    • Right: 5AY28LG8
    • Handle (both sides): 5AE50LG8
  • Replacement Pouches
  • Restoration video by cyrix9445
  • Diagram





  • Restoration Paint
    • PPG by Jack Fauth Jr.
    • Sherwin Williams by Brandon Ragan
    • Alternative
      • Hunt Club Green
        • with Satin Clear Coat

Back to Top

Dash

  • Cinder, 1992-93
    • Pad: 5AD83KXA
    • Steering Column: 5AS80KXA
    • Center Cluster: 5AD88KXA
    • Glove Box: 4638580
  • Paint
    • Sem Graphite 15303
    • Close match
Back to Top

Carpet

  • Dark Green, 1992-93 (w/o Extra Quiet Insulation, 20 ounce)
    • Front (Front Floor): 5BJ50LG8
    • Rear (Rear Floor): 5CU02LG8
    • Sides (Side Trim): 5AR94LG8
    • Trunk (Cargo): 5DB14LG8
    • Tailgate: NONE
    • Wheel Well Right (Wheelhouse): 5DA92LG8
    • Wheel Well Left (Wheelhouse): 5DA93LG8
    • Add-A-Trunk (If Equip): 5DM38MG8
  • Replacement Supplier
    • Auto Custom Carpets
      • P/N 18092 Complete w/ Rockers
      • Material: Cutpile
      • Color: 7980 Dark Green
      • Backing: Standard
  • Diagram
Back to Top

Console

  • Green, 1992-93
    • Base: 4713328
    • Lid: 4713330
  • Restoration
Back to Top

Seats

  • Sahara Edition Exclusive
    • Green Fabric Base
      • 92-20425
      • 1992-1994
      • Dark Green Trailcloth
    • Tan Leather Trim
    • Map Pouches
    • Green Fabric Pouches
    • 1992-1995 Style Prefered
      • (1987-1990 is Blue-Green)
    • Black Seat Belts
  • Repair Tips
Back to Top

Radio

  • Factory Radio w/out tape player
    • AR-7753 (56007519)
      • Produced 1992-1993
      • Light colored (when off) LCD screen
    • Comparison
    • Screen Accurate
      • Pictured above, Screen used JP12 at Islands of Adventure, Orlando
    • Credit: Victor Hugo
Back to Top

Roll Bars

  • Rollcage: Family Style / Full Cage, Sand Beige
    • Assembly: 55344665
    • Padding Front, Spice: 5CE40LTB
    • Padding Rear-R, Spice: 5CE64LTB
    • Padding Rear-L, Spice: 5CE65LTB
    • Padding Side Bars, w/ Speakers, Spice: 5BJ23LTB
Back to Top

Soundbar

  • Black Sound Bar
  • No Dome Light
Back to Top

Visors

Back to Top

Accessories:

Mirror Tag

Please visit our Mirror Tag Guide for detailed instructions. Tag files available in PDF format for download.

Production Keychain/Tag

  • Brand: Varies (Ex. Hillman Group)
  • Part Number: Varies (Ex. 704260)
  • Features:
    • Seen on JP12 during Dilophosaurus Attack
    • Flexible Body
    • Small Ring for Key
    • Red or Yellow
    • Small Rectangular Window for Label
    • Mostly Rectangular Design, Slight Convex Curves at short ends
  • Credit/Identifier: Brandon Constant
  • Modern Sources:
    • Home Depot
    • Lowes
    • Amazon

Back to Top

Other Recommendations:

  • JeepForum YJ FAQ and Stock Specs
  • Battery:
    • AGM (DieHard Platinum)
    • GEL (Optima)
  • Instatrunk:
    • Bestop P/N 42700-01 (security for props)
  • Lights:
    • LED Side Markers
    • LED Front Markers
    • LED Tail Lights - Bolt On, Some Wiring Required
    • LED Dash Upgrade - Bolt On, No Wiring Required
      • #194 bulbs: (These bulbs can be any color, to change the look of your gauges)
        • Speedometer - 2
        • Tachometer - 2
        • Battery & Oil gauges - 1
        • Fuel & Temp gauges - 1
        • HVAC - 1
        • 4x4 Light - 1
      • #74 bulbs: (These bulbs NEED to be white)
        • Left Turn Signal
        • Right Turn Signal
        • Brights
        • Brake Light
        • Check Engine
        • Seat Belt *
        • Maintenance Required *
        • Upshift Indicator *
        • Running Lights **
        • Hazard **
        • ABS **
        • Rear Defrost (Optional with Hard Top)
      * - These lights are standard equipment, but are not vital.
      ** - These bulbs are used with optional equipment. If your YJ has running lights or ABS, make sure you upgrade these bulbs as well. If you would like the running light indicator to not be on all the time, then you may omit that bulb.
    • LED Bulbs to purchase:
      • Reccomend using SuperBrightLEDs.com
        • For all the #194 bulbs, except the HVAC: WLED-x5
        • For the HVAC and 4x4 #194 bulbs: WLED-xHP5 bulb
        • For the #74 bulbs: 74-WHP
    • Original Jeep forum Post, credit UltimatE
Back to Top
